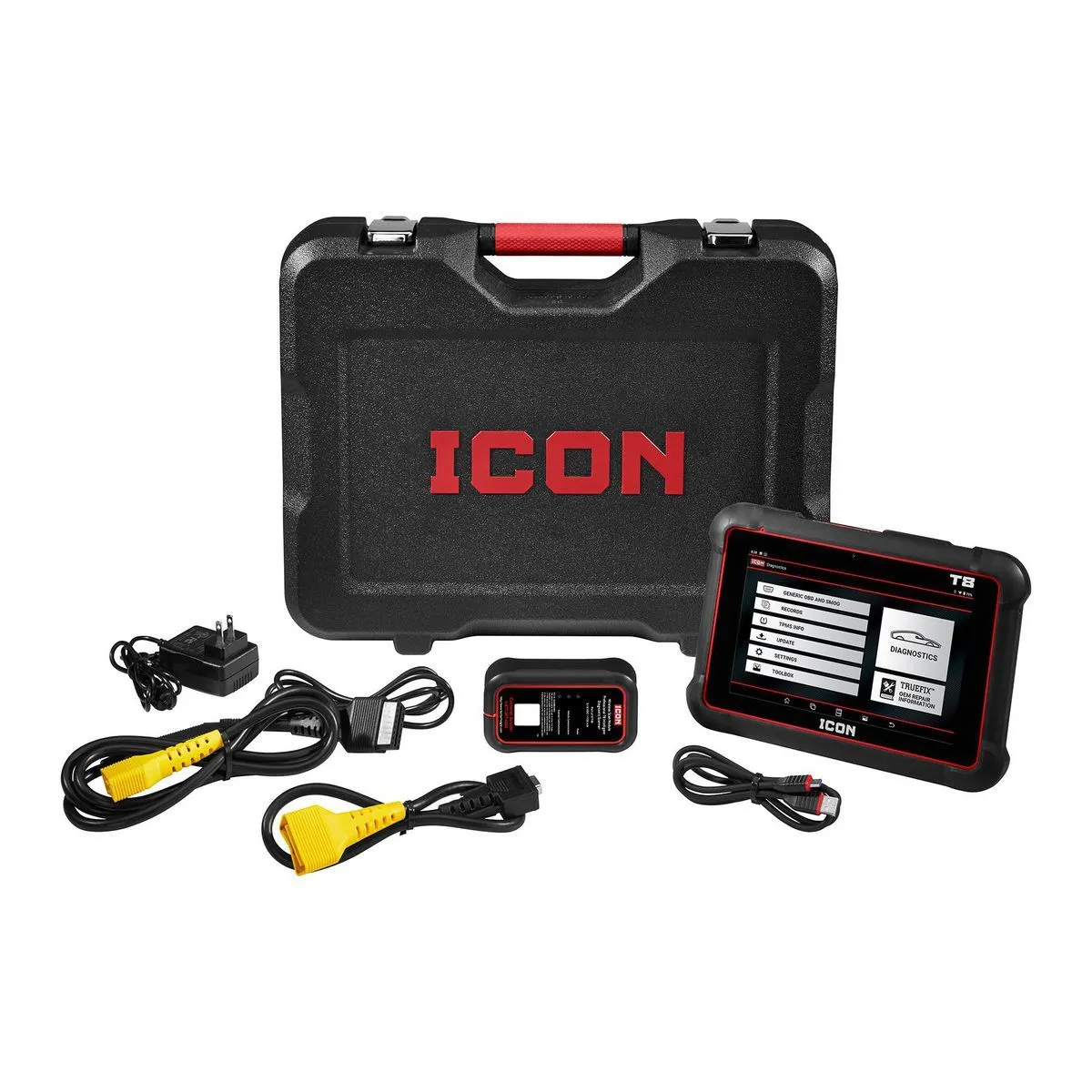

T8 Professional Intelligent Diagnostic Scanner

The ICON™ T8 Professional Intelligent Diagnostic Scanner is a cutting-edge propriety diagnostics tool made with advanced features and functionality to empower automotive professionals. The lightning-fast processor and expansive vehicle coverage allow this professional OE-level scanner to easily read and clear trouble codes, perform live data monitoring with graphing up to 8 PID's, conduct bi-directional system tests, perform special functions, coding, resets, and includes IDENTIFIX Code-Assist. The IDENTIFIX Code-Assist continually updates for 2 years providing faster, more accurate fixes using a database of over 4 million experienced-based, verified fixes. This scanner's intuitive interface ensures seamless navigation providing quick access to crucial information while offering wireless connectivity to printers for increased productivity. A 2-year subscription to IDENTIFIX Code-Assist and diagnostic software is included. The scanner is compatible with ANDROID version 10, Google Play Store, Find My Device, and unlocks by facial recognition.

• Powered by Code-Assist from IDENTIFIX with over 4 million real technician fixes for improved accuracy and faster repairs
• Powerful 2.0 GHZ quad-core processor with 4 GB of memory for lag-free operation
• Large 8 in. high-definition IPS touchscreen with multitouch and stylus for quick, easy use
• Wireless vehicle communication and diagnostic connections for 1996 and newer domestic, Asian, European, and exotic vehicles
• Comprehensive compatibility including OBDII, secure gateway, DoIP, can FD, and ADAS
• Professional-level diagnostics including read and graph live data, special functions, bi-directional controls, coding functions, and reset functions
• Stylus holder and flip-out stand in rear of housing for added convenience

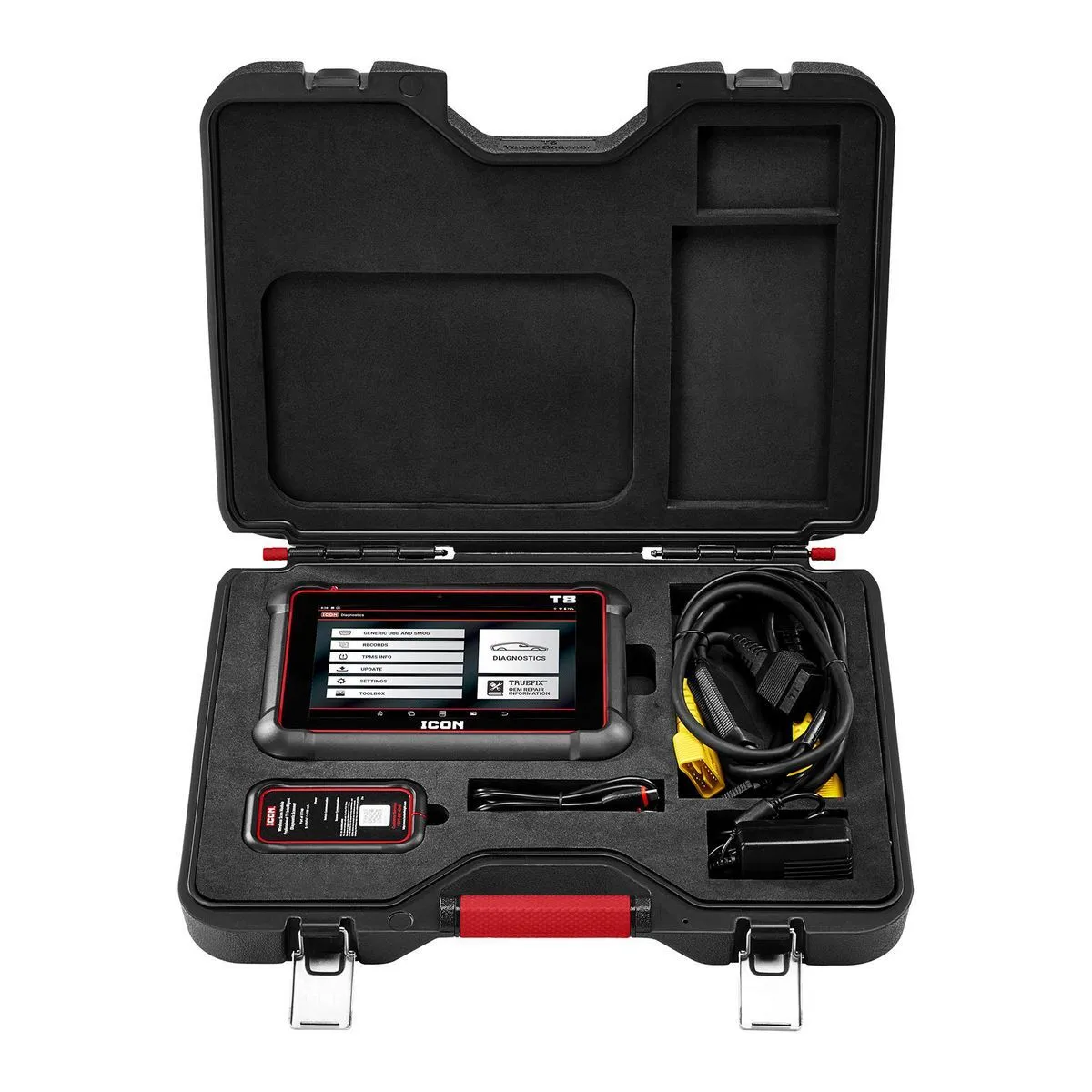

• Heavy duty case with removable pins converts into convenient foam tray
• Internet connection required for all scanner functions
• Includes 2-year subscription to IDENTIFIX Code-Assist and diagnostic software

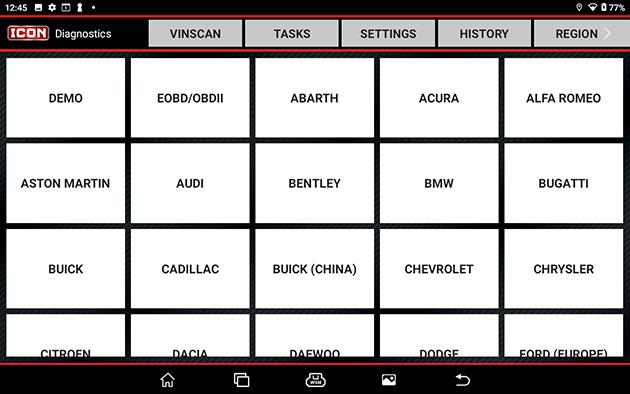

Vehicle Selection

Wireless Vehicle Communication and Diagnostic Connections for 1996 and newer Domestic, Asian, European and Exotic Vehicles.

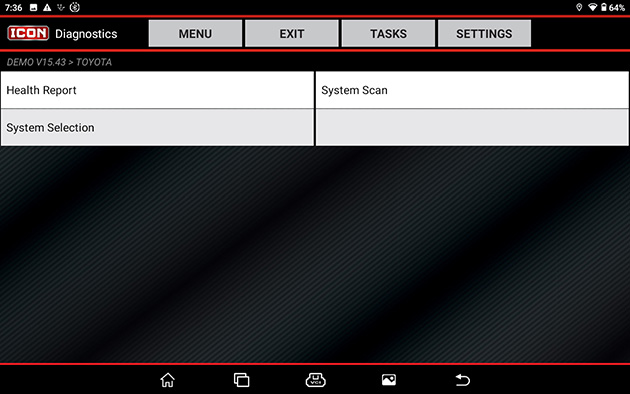

Diagnostic Path

Run an All System Code Scan, detect vehicle equipment, or select a certain vehicle system to diagnose.

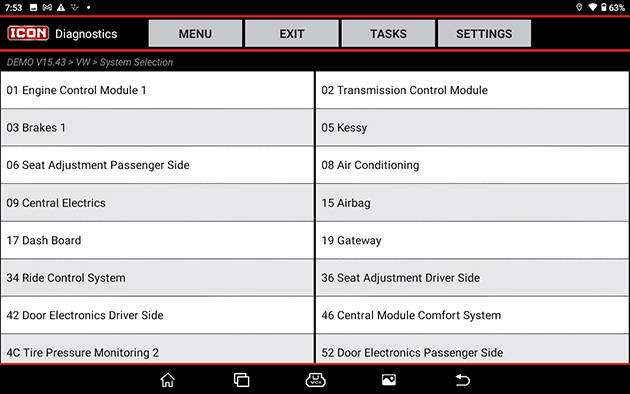

System Selection

Under "System Selection" is a full list of the vehicle's systems to choose from to perform scans, tests, or special functions.

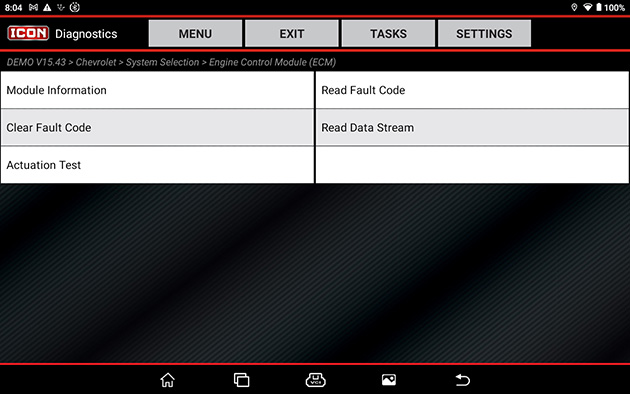

Read and Clear Trouble Codes

With "Engine" selected, read and clear trouble codes, view and record data streams, perform bi-directional tests and special functions.

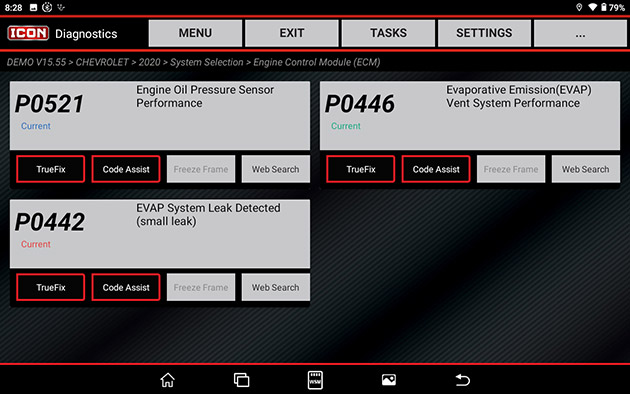

View Trouble Codes and Descriptions

View trouble codes and descriptions as well as save, view repair info and Code Assist.

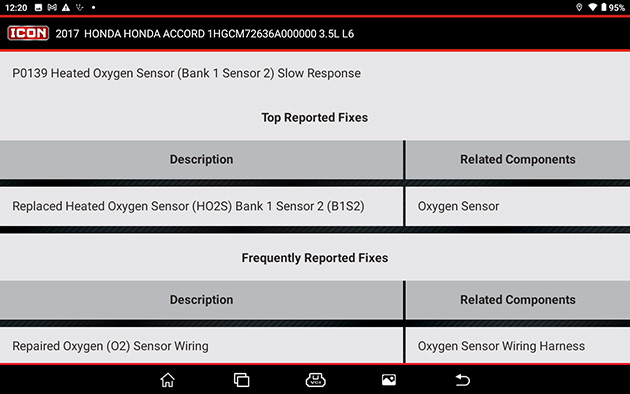

Code Assist

Code Assist Powered By Identifix has the most used fixes supplied by real technicians for Trouble Codes and is continually updated.

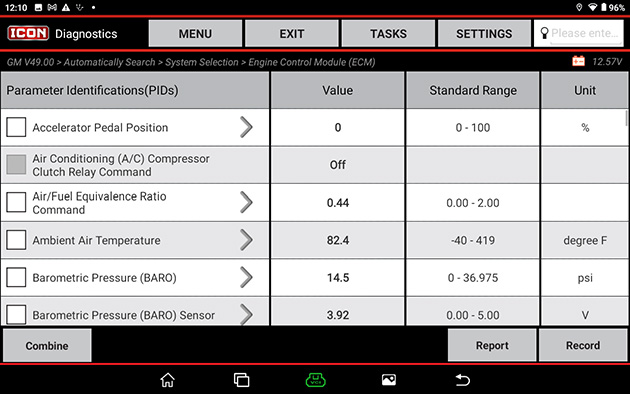

Read Data

Read Data is a live data stream showing real-time values and units of the Parameter Identifications (PIDs) with the ability to record.

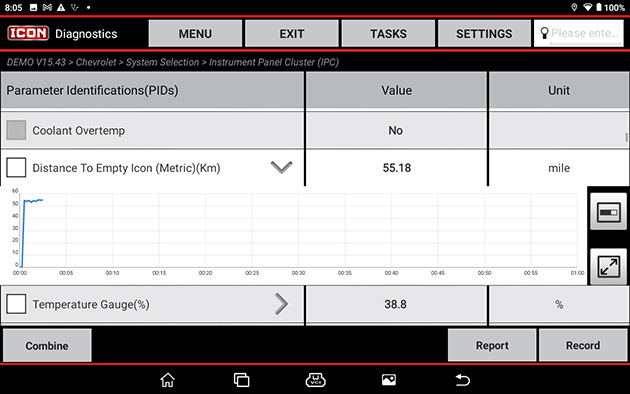

Read and Graph Live Data

Quickly graph one or more PIDs on the read live data screen while still being able to scroll through the different PIDs.

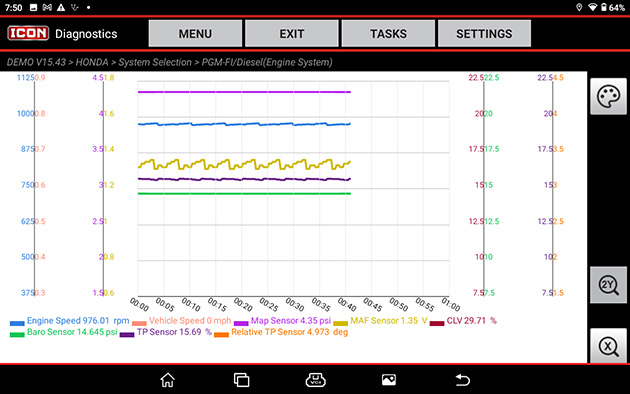

Combine Multiple PIDs

Ability to combine multiple PIDs onto a single graph for quick comparisons and process interactions.

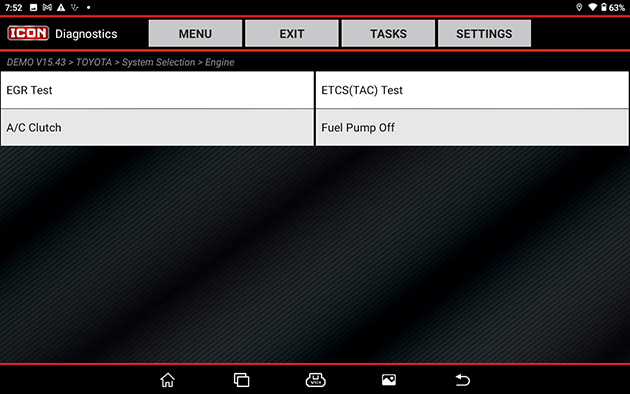

Actuator Test

With selecting "Actuation Test" the tablet can perform multiple bi-directional tests depending on which vehicle system is selected.

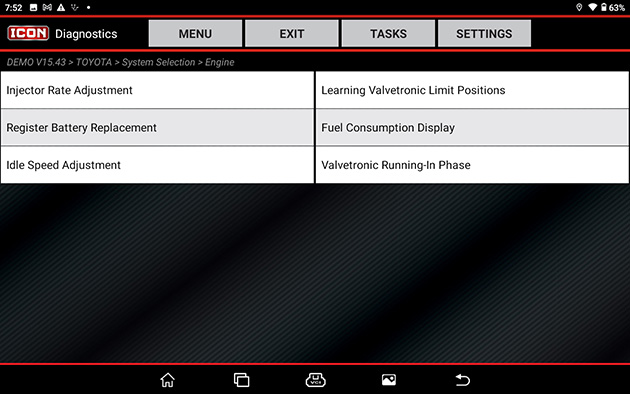

Special Functions

Inside "Special Functions" the tablet can view and perform coding functions, calibrations, adjustments, resets and re-learns depending on the specific vehicle systems selections.

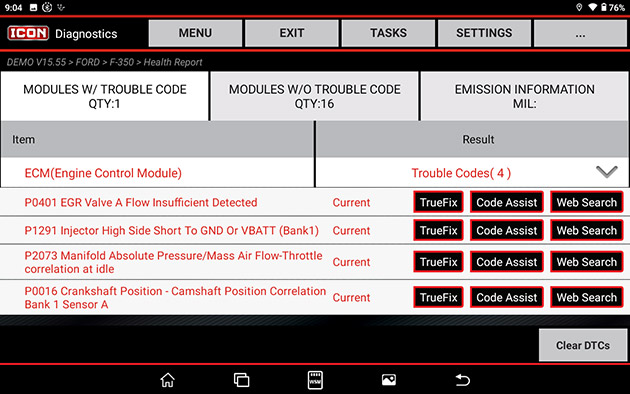

All System Scan

An all system scan provides a fast and efficient method to scan all modules and all systems for trouble codes. After the all system scan finishes, the results are listed in 3 tabs: 1. Trouble Codes, 2. Working Modules, 3. Emissions

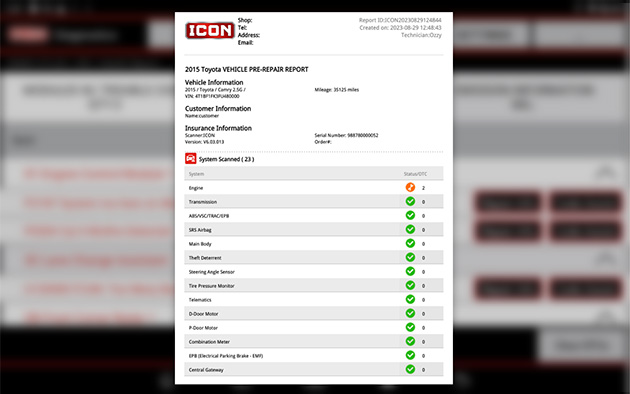

Create Pre and Post Code Scan Reports

The technician can either wirelessly print the report directly from the device to a shop printer or email as a PDF.
